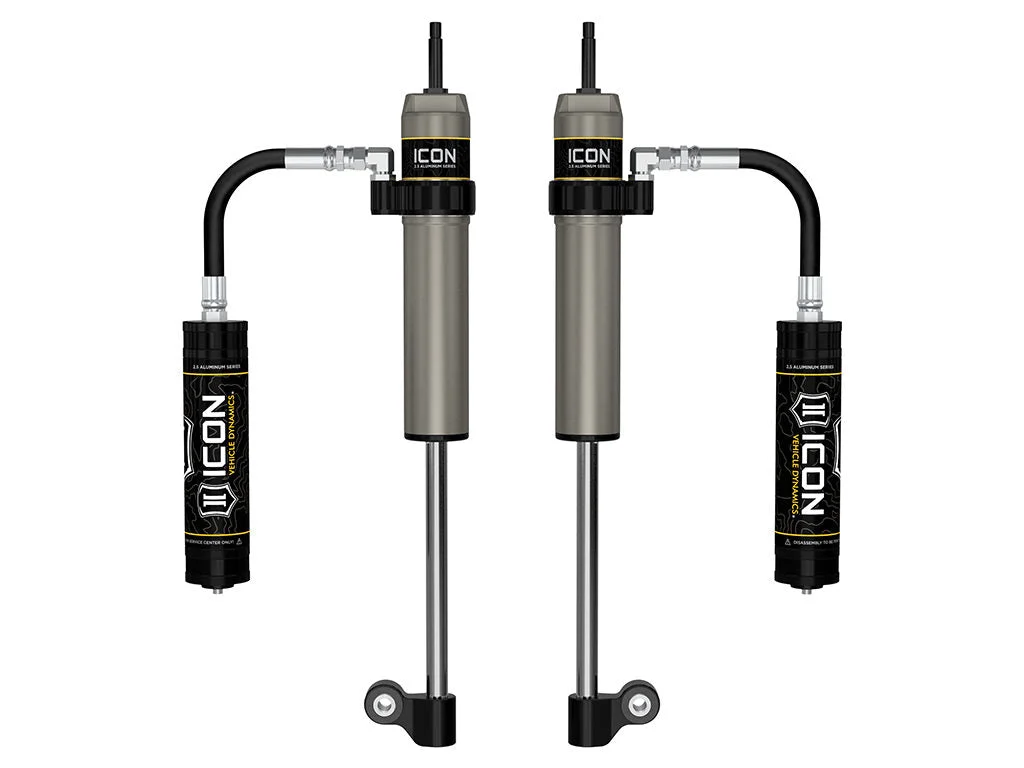

Icon 57826P – 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR – Pair

Description

Icon 57826P – 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR – Pair

05-23 TACOMA RXT REAR 2.5 VS RR PAIR

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these “RXT” shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle’s factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON exclusive side mounted “RXT” rod ends allow for increased shaft travel and compatibility with vehicle’s stock shock mounting points
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NoAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 14.87Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Type: OilExtended Length: 25.2External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 257341S – 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORTService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 611008 – 9/16 RXT HEAVY DUTY STEM BUSHING KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletStroke Length Rear: 10.33Tube Outside Diameter: 2.5Upper Mount Type: StemValving Type: Digressive
