Icon 57826EP – 2016+ Toyota Tacoma Rear 2.5 Series Shocks VS RR CDEV – Pair

Description

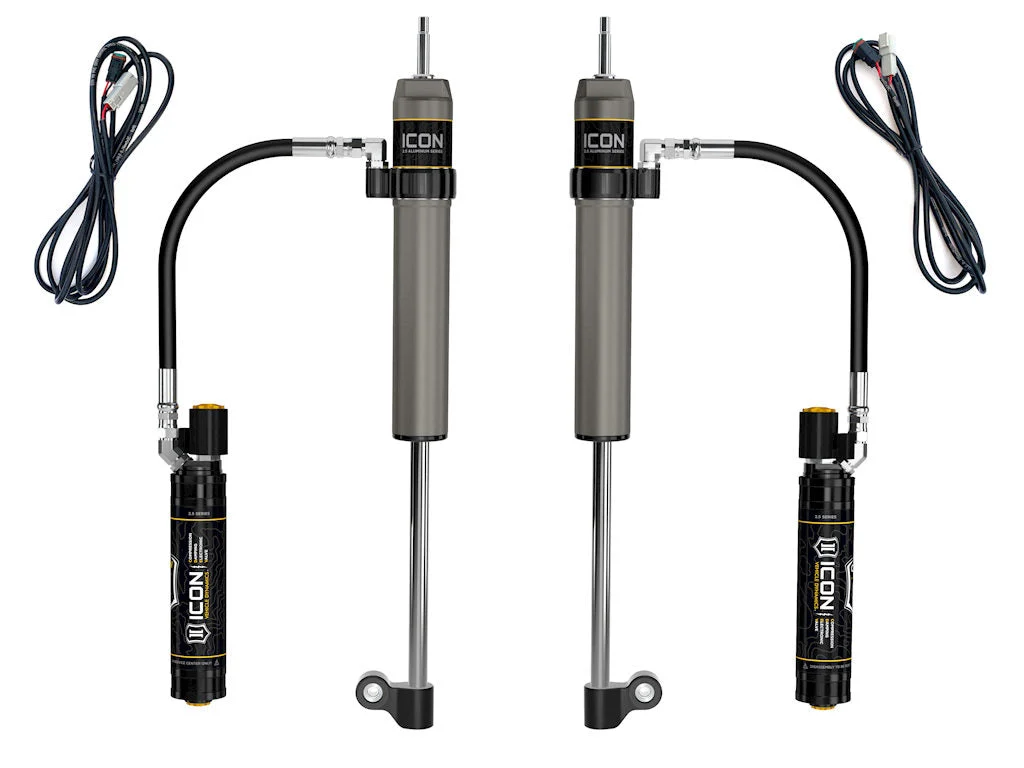

Icon 57826EP – 2016+ Toyota Tacoma Rear 2.5 Series Shocks VS RR CDEV – Pair

05-23 TACOMA RXT REAR 2.5 VS RR CDEV PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON exclusive side mounted “RXT” rod ends allow for increased shaft travel and compatibility with vehicle’s stock shock mounting points
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 58735E – 05-23 TACOMA EXT TRAVEL 2.5 VS RR CDEV COILOVER KITAdd-On Part: 53502 – 16-23 TACOMA IIC INSTALL KITAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 14.87Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 25.2External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 611008 – 9/16 RXT HEAVY DUTY STEM BUSHING KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 257341S – 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORTService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Shaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletStroke Length Rear: 10.33Tube Outside Diameter: 2.5Upper Mount Type: StemValving Type: Digressive
