Icon 57823EP – 2014+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR CDEV – Pair

Description

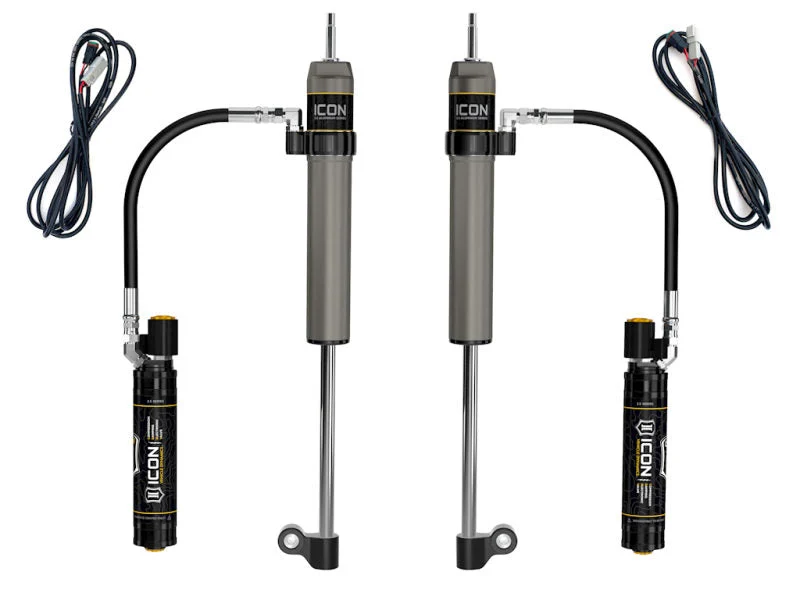

Icon 57823EP – 2014+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR CDEV – Pair

14-21 TUNDRA RXT REAR 2.5 VS RR CDEV PAIR

2014-2021 TUNDRA RXT REAR 2.5 VS REMORE RESERVOIR WITH CDEV SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Grade Type: PerformanceLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 257342 – 7/8 SHAFT 16.85 OAL, 12.00 TRAVELService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 611008 – 9/16 RXT HEAVY DUTY STEM BUSHING KITService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: StemAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 58750E – 14-21 TUNDRA 2.5 VS RR CDEV COILOVER KITAdd-On Part: 53506 – 14-21 TUNDRA IIC INSTALL KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: ElectronicallyBoot Included: NOBore Diameter: 2.25Cylinder Color: GreyCylinder Material: AluminumDamping Type: OilExternal Reservoir: YesGas Charged: Yes
