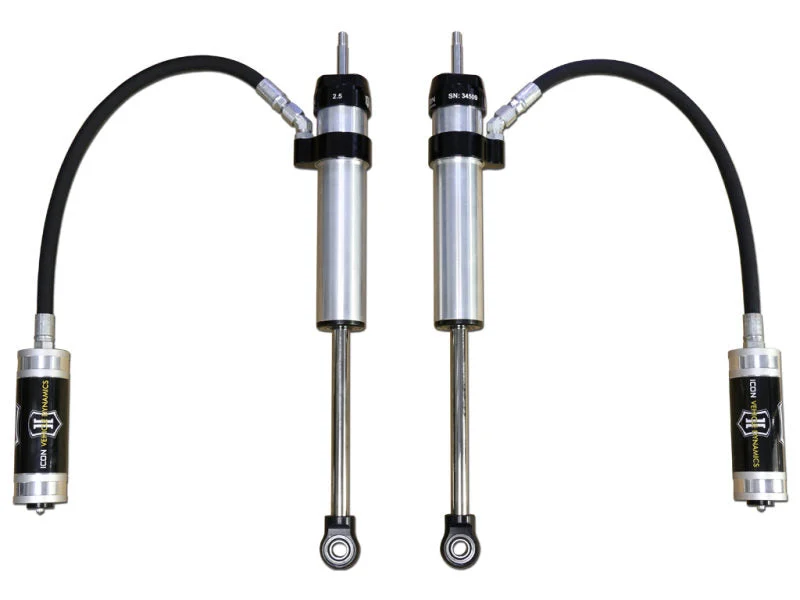

Icon 57810P – 2007+ Toyota FJ / 2003+ Toyota 4Runner 1-3in Rear 2.5 Series Shocks VS RR – Pair

Description

Icon 57810P – 2007+ Toyota FJ / 2003+ Toyota 4Runner 1-3in Rear 2.5 Series Shocks VS RR – Pair

07-23 FJ/03-24 4RNR/03-23 GX 1-3″ REAR 2.5 VS RR PAIR

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• 100% Rebuildable
• 100% Revalveable
• All ICON 2.5 Aluminum Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 611007 – 9/16 MEDIUM DUTY STEM BUSHING KITService Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVELService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: StemAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 56100 – 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDSAdjustable: YesAdjustable Damping: NoBoot Included: NOBore Diameter: 2.25
