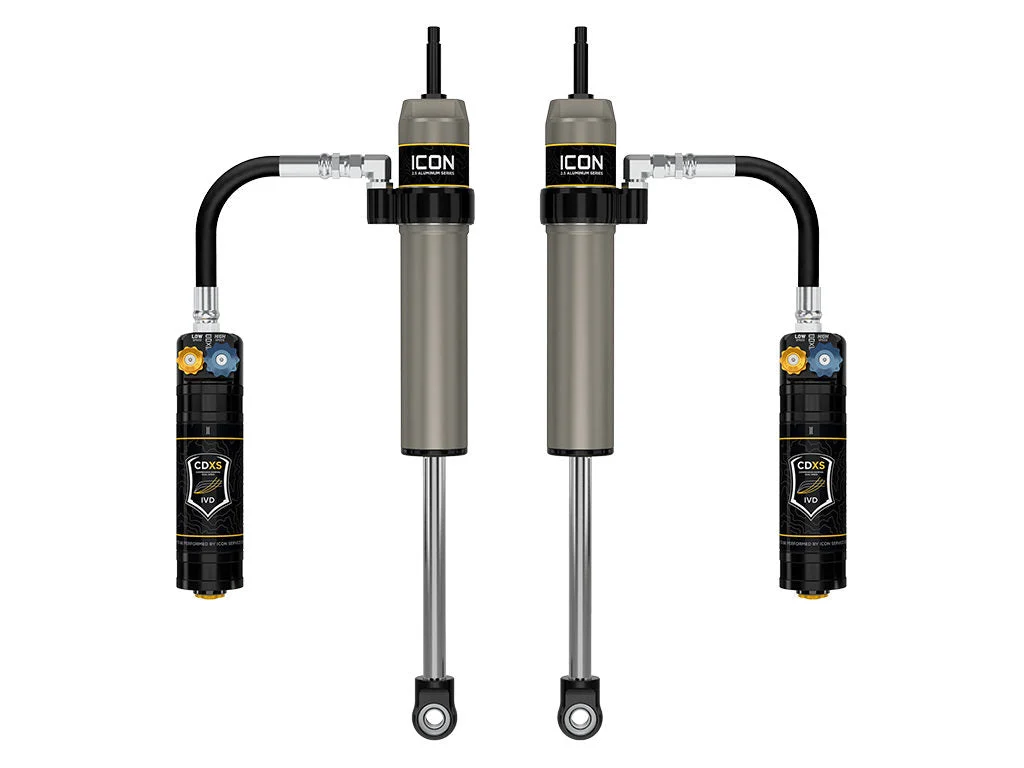

Icon 57805XP – 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair

Description

Icon 57805XP – 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair

05-23 TACOMA 0-1.5″ REAR 2.5 VS RR CDXS PAIR

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON’s exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

• 6061 aircraft grade aluminum CNC machined components
• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade shock oil for consistent suspension damping along a wide temperature range
• 100% Rebuildable and revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Adjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 14.98Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: Dual Speed/ManualDamping Type: OilExtended Length: 24.31External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVELService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 611007 – 9/16 MEDIUM DUTY STEM BUSHING KITService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Shaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: CENTER OF EYELETStroke Length Rear: 9.33Tube Outside Diameter: 2.5Upper Mount Type: StemValving Type: Digressive
