Icon 57804CP – 91-07 Toyota Land Cruiser 80/100 4-6in Rear 2.5 Series Shocks VS RR CDCV – Pair

Description

Icon 57804CP – 91-07 Toyota Land Cruiser 80/100 4-6in Rear 2.5 Series Shocks VS RR CDCV – Pair

91-07 LAND CRUISER 80/100 4-6″ REAR 2.5 VS RR CDCV PAIR

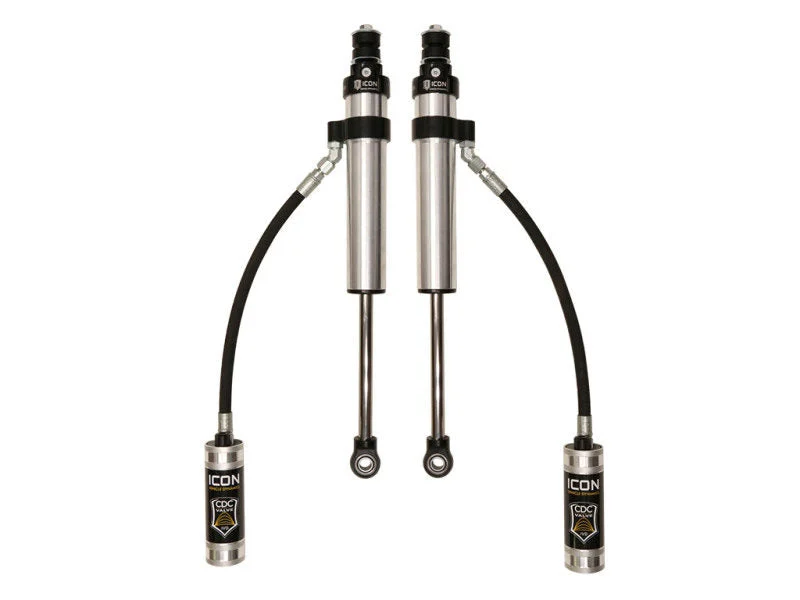

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 7/8” diameter induction hardened, chrome plated shock shaft
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Rebuildable
• 100% Revalveable

Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NOAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 611007 – 9/16 MEDIUM DUTY STEM BUSHING KITService Parts: 257341S – 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORTService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: CENTER OF EYELETTube Outside Diameter: 2.5Upper Mount Type: StemValving Type: DigressiveAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55
