Description

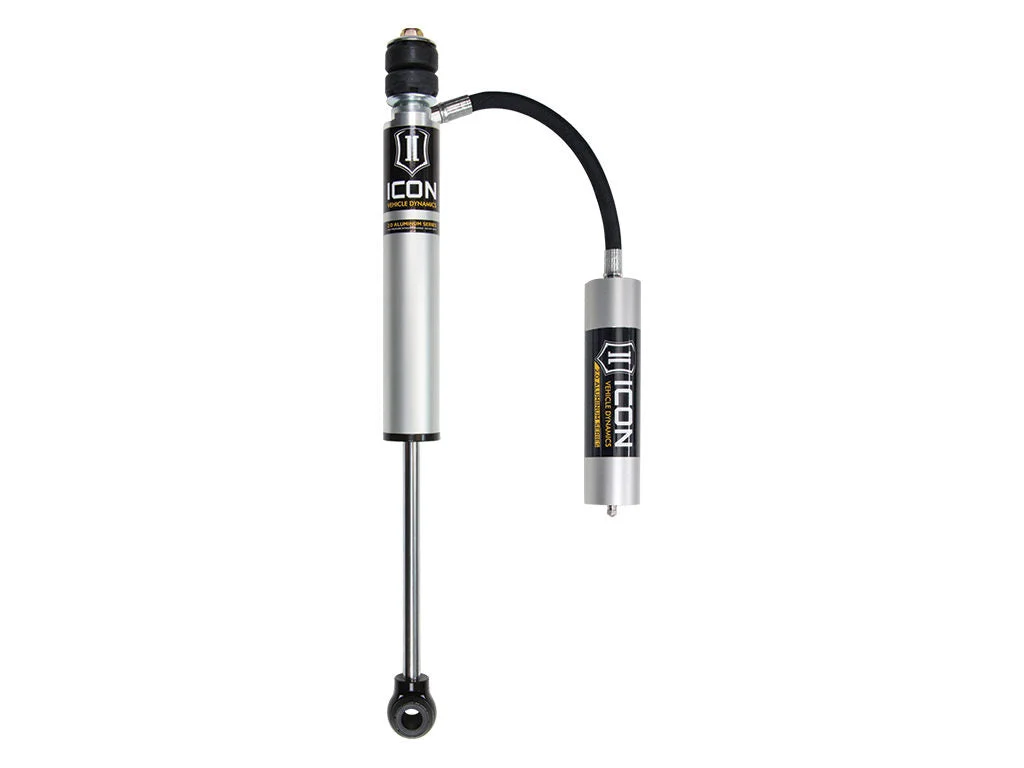

Icon 56522R – 2024+ Toyota Land Cruiser 250 Series/Lexus GX550 0-3in Lift Passenger Side Rear Shock Absorber
24-26 LC250/24-26 GX550 0-3″ PASS REAR 2.0 VS RR
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
- Rubber dust boot included for added shaft protection
- Fully rebuildable and re-tunable
Active or Passive Suspension: PassiveAdd-On Part: 52752 – 24-25 LC250/24-26 GX550 2″ DUAL RATE REAR SPRING KITAdd-On Part: 56100 – 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDSAdd-On Part: 56520R – 24-25 LC250/24-26 GX550 0-3″ DRIVER REAR 2.0 VS RRAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NoAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: NoBody Color: GrayBody Diameter: 2Body Material: AluminumBoot Color: BlackBoot Included: NoBore Diameter: 1.75Bushing Color: BlackBushing Included: yesBushing Material: RubberBushing Material: PolyurethaneColor: GrayColor: SilverCylinder Color: GrayCylinder Finish: AnodizedCylinder Material: AluminumCylinder Outside Diameter: 2Damping Type: OilDust Boot Included: YesDust Shield: NoDust Shield Included: YesDust Shield Material: RubberExternal Reservoir: YesFinish: AnodizedGas Charged: YesGrade Type: PerformanceHydraulic Lockout: NoIncludes Bump Stop: NoInternal Construction Type: Single TubeInternal Rebound Bumper: YesInternal Rebound Spring: NoLower Mount Sleeve Inside Diameter: .75Lower Mount Sleeve Overall Length: 1.825Lower Mount Type: EyeletMaterial: SteelMaterial: AluminumMaximum Ride Height Raising Distance: 3Minimum Ride Height Raising Distance: 0Mounting Hardware Included: NoRemote Reservoir: YesReservoir Diameter: 2Reservoir Hose Inside Diameter: .25Reservoir Hose Length: 29Reservoir Length: 8Reservoir Type: RemoteRod Diameter: .625Self-Leveling: NoService Parts: 202003 – 2.0 REMOTE RESI REBUILD KITShaft Diameter: 0.625Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Bore Size: 1.75Shock Absorber Rod End Measuring Point: Center of EyeletSuspension Type: SpringUpper Mount Type: StemValving Type: LinearValving Type: Digressive
