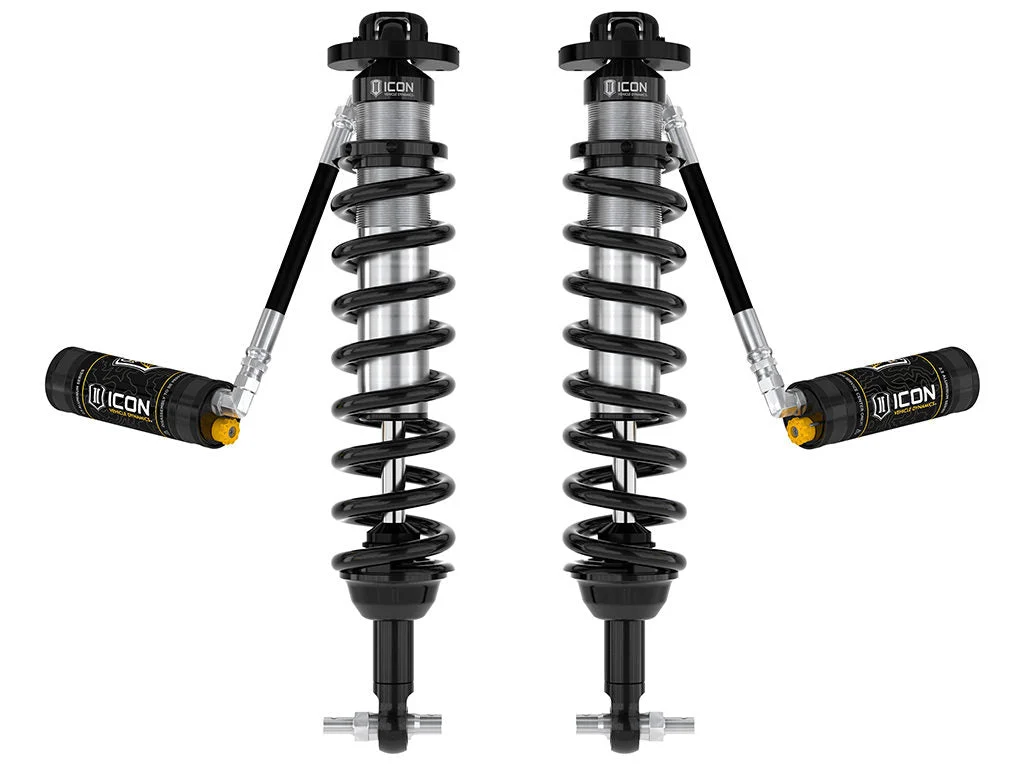

Icon 48700C – 21-UP Ford Bronco 2-3in Front 2.5 VS RR CDCV COILOVER KIT

Description

Icon 48700C – 21-UP Ford Bronco 2-3in Front 2.5 VS RR CDCV COILOVER KIT

21-23 BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT

These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDCV which offers 10 adjustment points.

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

• Increased wheel travel (up to 11.5”) and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Adjustable up to 3-4″ of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• 100% Bolt-on – no drilling, cutting or welding necessary for installation

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 48400DJ – 21-23 BRONCO TUBULAR UCA DJ PRO KITAdd-On Part: 611075 – C/O BUMP STOP SPACER KIT 7/8″ SHAFT 1/2″ TALLAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 42000 – 21-23 BRONCO HIGH CLEARANCE CRASH BAR KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 45212 – 21-23 BRONCO XD TIE ROD KITAdd-On Part: 48500DJ – 21-23 BRONCO BILLET UCA DJ PRO KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 18.14Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 24.53Front Spring Rate: 500Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: BAR PINMaterial: SteelMaterial: AluminumMaximum Lift: 4Maximum Ride Height Raising Distance: 4Minimum Lift: 1.5OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: (With Sasquatch Package): 35″ x 12.50″ (37″ tires require coilover bump stop spacers along with minor trimming)Recommended Aftermarket Tires: (Without Sasquatch Package): 35″ x 12.50″ (Recommend high clearance crash bars part number 42000, 37″ tires require coilover bump stop spacers along with trimming and modifications)Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys – 20×9″ w/ 5.00″ Backspace / 0mm OffsetRecommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys – 17×8.5″ w/ 4.75″ Backspace / 0mm OffsetRecommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys – 18×9″ w/ 6.00″ Backspace / 25mm OffsetRecommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys – 17×8.5″ w/ 5.75″ Backspace / 25mm OffsetRecommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys – 18×9″ w/ 5.00″ Backspace / 0mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat on Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.39Upper Mount Type: Mounting PlateValving Type: Digressive
