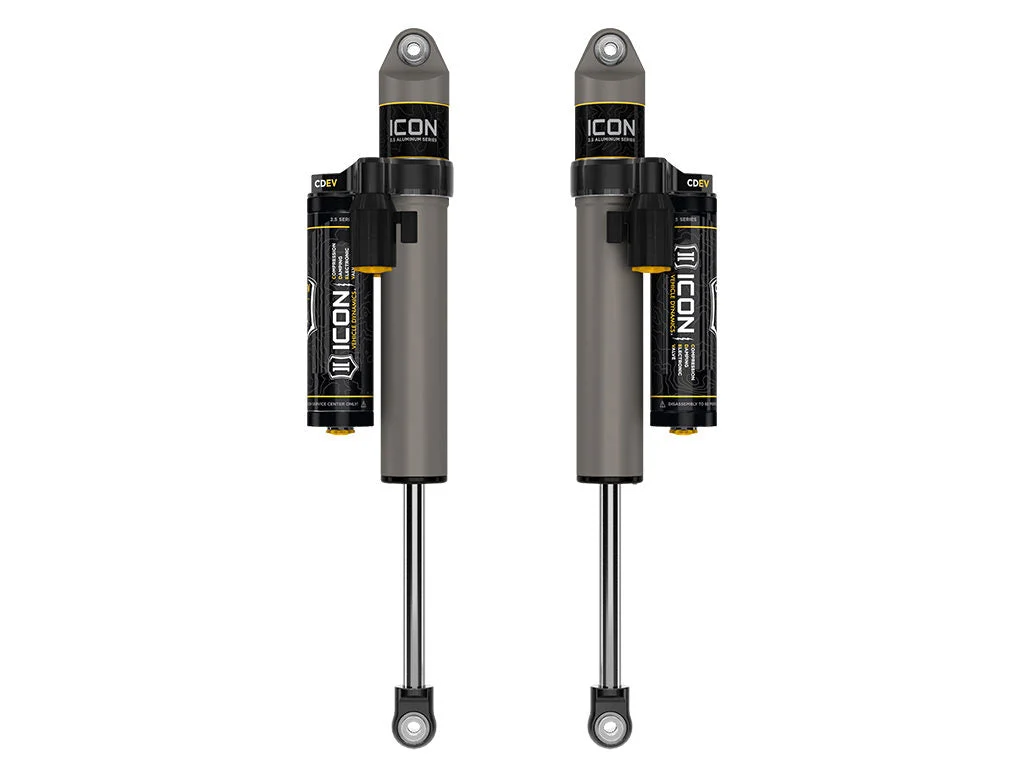

Icon 37705EP – 2017+ Ford F-250/F-350 Super Duty 4WD 0-3in Rear 2.5 Series Shocks VS PB CDEV – Pair

Description

Icon 37705EP – 2017+ Ford F-250/F-350 Super Duty 4WD 0-3in Rear 2.5 Series Shocks VS PB CDEV – Pair

17-25 FSD 0-3″ REAR 2.5 VS PB CDEV PAIR

These ICON VS 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 67800EP – 17-25 FSD 4WD 0-2.5″ FRONT 2.5 VS RR CDEV PAIRAdd-On Part: 93500 – 15-25 F150 & 17-22 FSD IIC INSTALL KITAdd-On Part: 61721E – 17-25 FSD 4WD 4-5.5″ 2.5 VS RR CDEV BOLT IN CO CONVERSION KITAdd-On Part: 67811EP – 23-25 FSD 4.5″ FRONT 2.5 VS RR CDEV PAIRAdd-On Part: 93502 – 23-25 FSD IIC INSTALL KITAdd-On Part: 61720E – 17-23 F250/F350 4WD 2.5-3″ 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT W/ CAMSAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 18.65Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 30.98External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: PiggybackService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 257342 – 7/8 SHAFT 16.85 OAL, 12.00 TRAVELShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletStroke Length Rear: 12.33Tube Outside Diameter: 2.5Upper Mount Type: EyeletValving Type: Digressive
