Icon 217810P – 03-12 Dodge Ram HD 4.5in Front 2.5 Series Shocks VS RR – Pair

Description

Icon 217810P – 03-12 Dodge Ram HD 4.5in Front 2.5 Series Shocks VS RR – Pair

03-12 RAM HD 4.5″ FRONT 2.5 VS RR PAIR

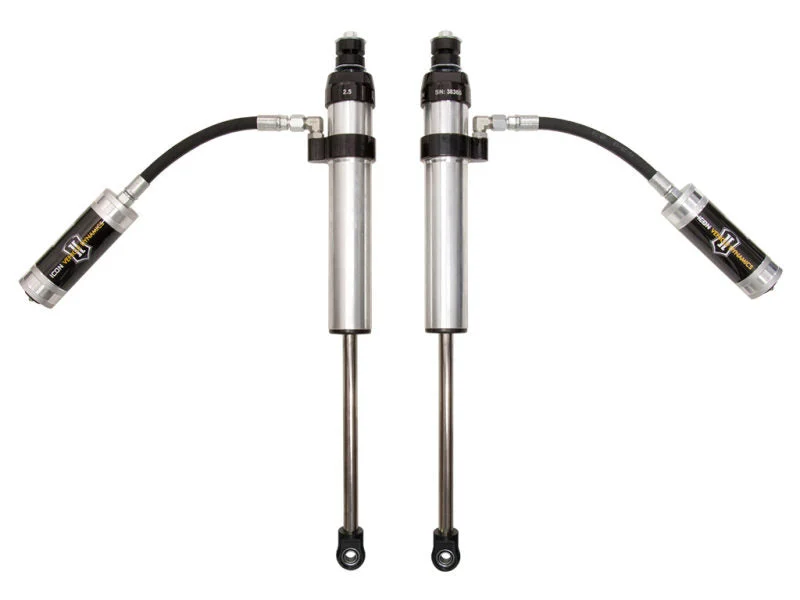

2003-2012 RAM HD 4.5″ LIFT FRONT 2.5 VS REMOTE RESERVOIR SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NOBoot Included: NOBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 257341 – 7/8 SHAFT 15.85 OAL, 11.00 TRAVELService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: CENTER OF EYELETTube Outside Diameter: 2.5Upper Mount Type: Stem
