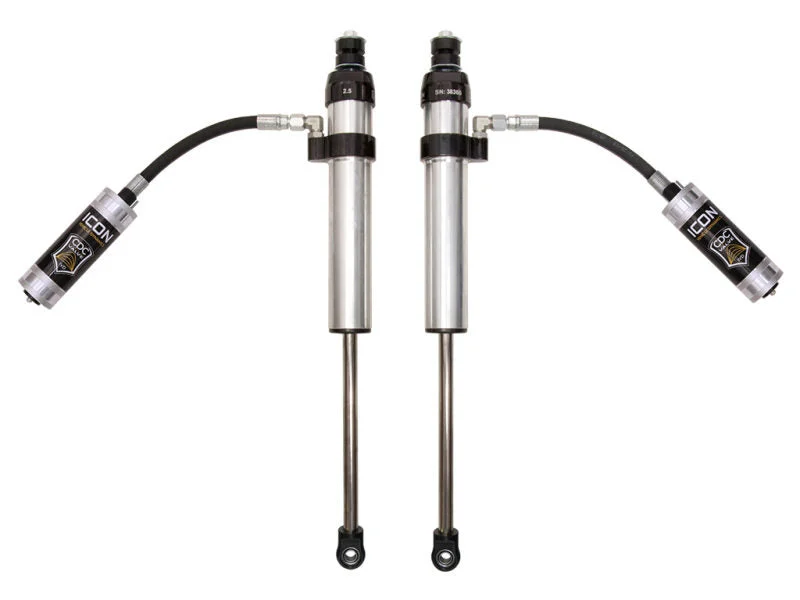

Icon 217800CP – 03-12 Dodge Ram HD 2.5in Front 2.5 Series Shocks VS RR CDCV – Pair

Description

Icon 217800CP – 03-12 Dodge Ram HD 2.5in Front 2.5 Series Shocks VS RR CDCV – Pair

03-12 RAM HD 2.5″ FRONT 2.5 VS RR CDCV PAIR

2003-2012 RAM HD 2.5″ LIFT FRONT 2.5 VS REMOTE RESERVOIR CDCV SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: YesBoot Included: NOBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 257340 – 7/8 SHAFT 14.25 OAL, 10.00 TRAVELShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: Stem
