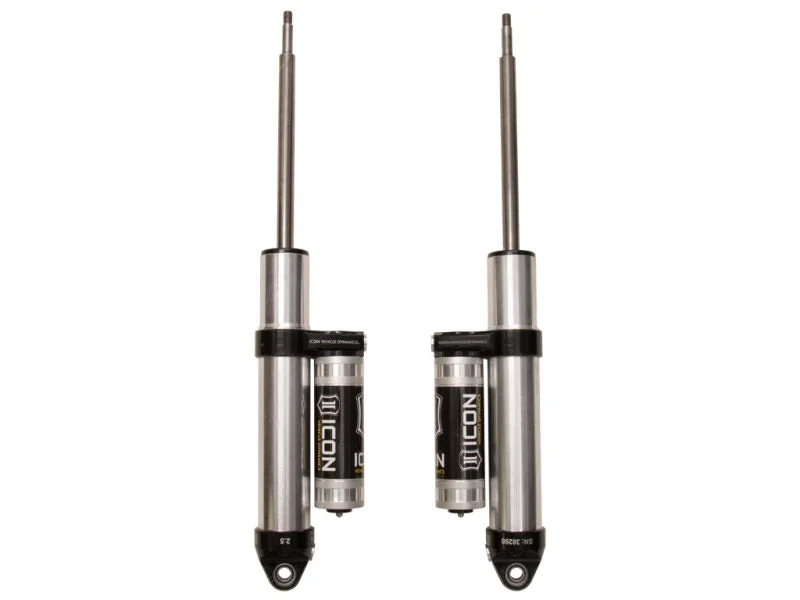

Icon 217707P – 2014+ Ram 2500 2in Standard Rear 2.5 Series Shocks VS PB – Pair

Description

Icon 217707P – 2014+ Ram 2500 2in Standard Rear 2.5 Series Shocks VS PB – Pair

14-UP RAM 2500 2″ STANDARD REAR 2.5 VS PB PAIR

2014-UP RAM 2500 2″ LIFT STANDARD REAR 2.5 VS PIGGYBACK SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Adjustable: NOBoot Included: NOBore Diameter: 2.25Cylinder Color: SilverCylinder Material: AluminumDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 257341STEM – 7/8 SHAFT 17.58 OAL, 11.00 TRAVELService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252001 – 2.5 FIXED SPANNER WRENCHShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: CENTER OF EYELETShock Absorber Rod End Measuring Point: Shoulder of StemUpper Mount Type: Stem
