Description

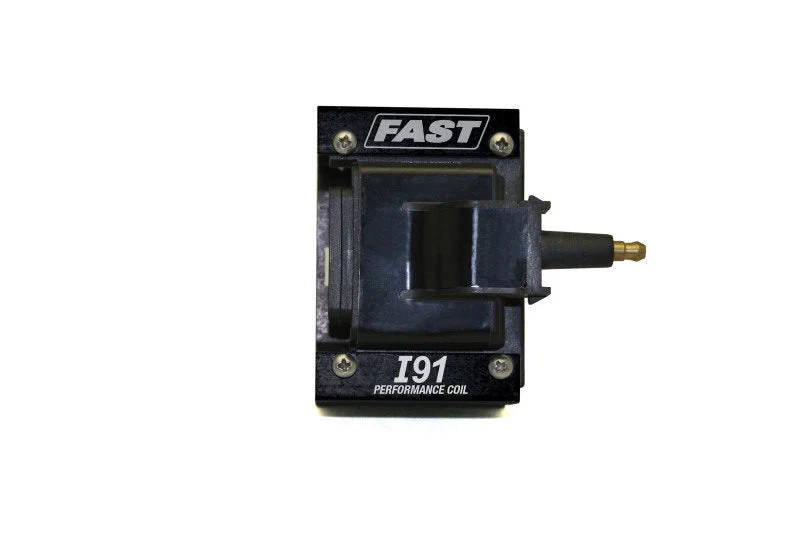

FAST 730-0891 – LS91 High Output Universal External-Core Coil
Ignition Coil – LX91 – E-Core – 0.400 ohm – Male HEI – Epoxy Filled – 90 Degree Boot / Terminal Included – Black – Each
The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.
- High-output E-core coils for race and street
- Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street
- E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.
- Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core
- Insulated primary connector for enhanced safety with mating connector included
- Improved coil wire retention and longer creep path protects against high voltage arcing
- 50 state legal CARB E.O. D-225-60
Ballast Resistor Included: NoMounting Bracket Included: YesWeight: 1.25 lbsTurns Ratio: 57:1Terminal Quantity: 2Spark Duration: 280 uSSecondary Resistance: 4.6K ohmsSecondary Inductance: 14.4 HQuantity: Sold IndividuallyPrimary Resistance: .40 ohmsPrimary Inductance: 4.7 mHPeak Current: 380 mAOil Filled: NoMounting Position: AnyMount Type: IntegralMeets or Exceeds OEM Specs: YesMaximum Voltage: 47,000 VLength: 3.75Leakage Inductance: .23 mHHeight: 3Diameter: N/ACoil Wire Terminal Quantity: 1Coil Wire Included: NoCoil Wire Attachment: Male/HEICoil Style: E-CoreCoil Shape: SquareCoil Internal Construction: EpoxyCoil Color: BlackWidth: 2.5C.A.R.B. Exempt?: YesC.A.R.B. EO Number: D-255-60
