Description

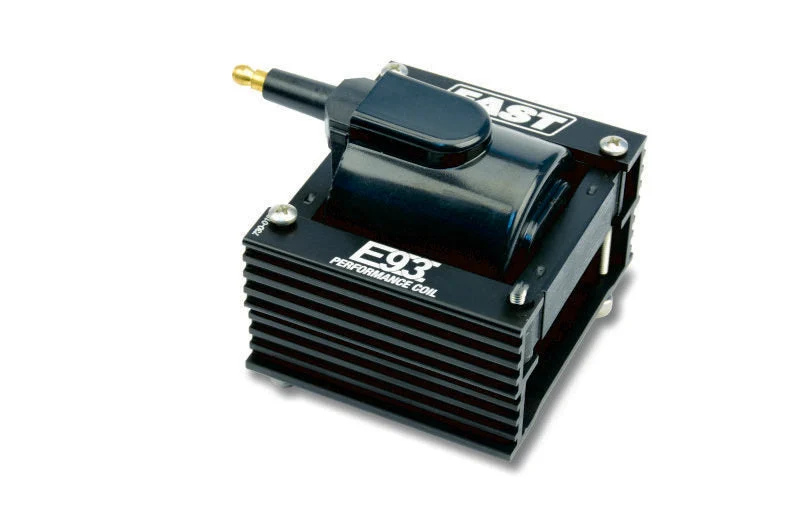

FAST 730-0192 – E93 Racing Ignition Coil
Ignition Coil – P93 Series – E-Core – 0.200 ohm – Male HEI – 90 Degree Boot / Terminal Included – Black – Racing CD Ignition Systems – Each
E93 Racing Coil is designed for use with E7 Ignition Control or E6 Ignitions in Racing Applications.
When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.
Weight: 2.13 lbsBallast Resistor Included: NoMounting Bracket Included: YesTurns Ratio: 60:1Terminal Quantity: 2Spark Duration: 245 uSSecondary Resistance: 820 ohmsSecondary Inductance: 6.8 HQuantity: Sold IndividuallyPrimary Resistance: .20 ohmsPrimary Inductance: 1.9 mHPeak Current: 615 mAOil Filled: NoMounting Position: AnyMount Type: IntegralMeets or Exceeds OEM Specs: YesMaximum Voltage: 50,000 VLength: 4.25Leakage Inductance: .14 mHHeight: 3.25Diameter: N/ACoil Wire Terminal Quantity: 1Coil Wire Included: NoCoil Wire Attachment: Male/HEICoil Style: E-CoreCoil Shape: SquareCoil Internal Construction: EpoxyCoil Color: BlackWidth: 3.5C.A.R.B. Exempt?: YesC.A.R.B. EO Number: D-255-60
