Description
Edelbrock 39703 – EFI Throttle Body Pro-Flo XT 90mm Black Mat Anodized Finish
Throttle Body – Pro-Flo XT – 1000 CFM – LS-Series Bolt Pattern – 90 mm Single Blade – Aluminum – Black Powder Coat – GM LS-Series – Each
Edelbrock Victor LS Series 90mm Throttle Body #39703 for cable-driven Gen III/IV LS is constructed of billet aluminum with black finish. Enlarged single-bore body with progressive linkage, thicker blade, dual springs, includes TPS and IAC.
Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT(TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!
- Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. Provisions for either LS1 or LS2 mounting bolt patterns.
- Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction

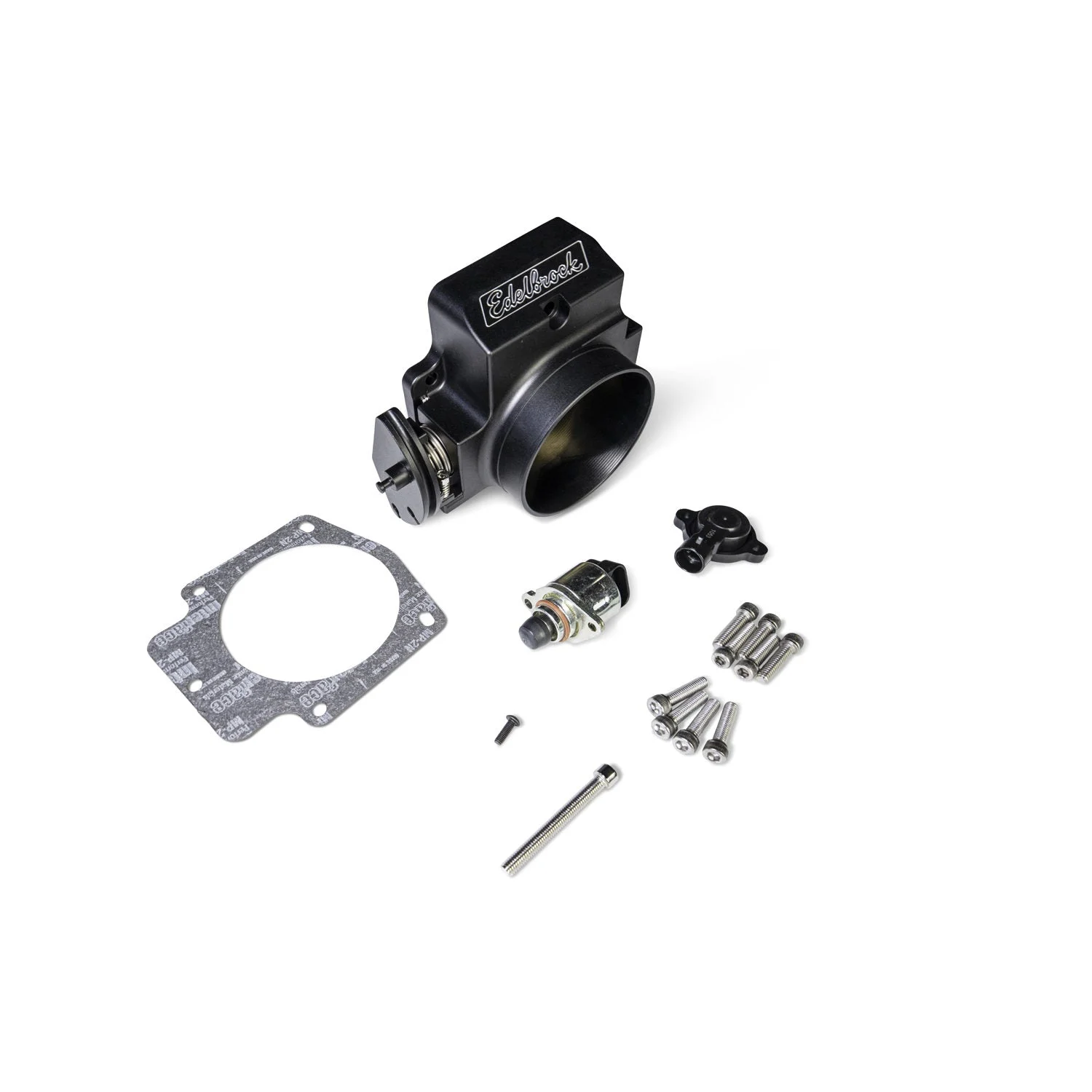

- Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket
Gasket Or Seal Included: YesFuel Injectors Included: NoIdle Air Control Motor Included: YesThrottle Body Finish: Satin Black AnodizedThrottle Body Material: Billet AluminumThrottle Body Type: Multi Port InjectionThrottle Position Sensor Included: YesAirflow Rate: 1000cfmBore Diameter: 90mmVenturi Quantity: SingleThrottle Body Actuation: CableHardware Included: Yes
