Eagle 15012030 – Chevy Big Block Rotating Assembly with 4.390in Bore 4.500in Stroke +38cc Dome

Description

Eagle 15012030 – Chevy Big Block Rotating Assembly with 4.390in Bore 4.500in Stroke +38cc Dome

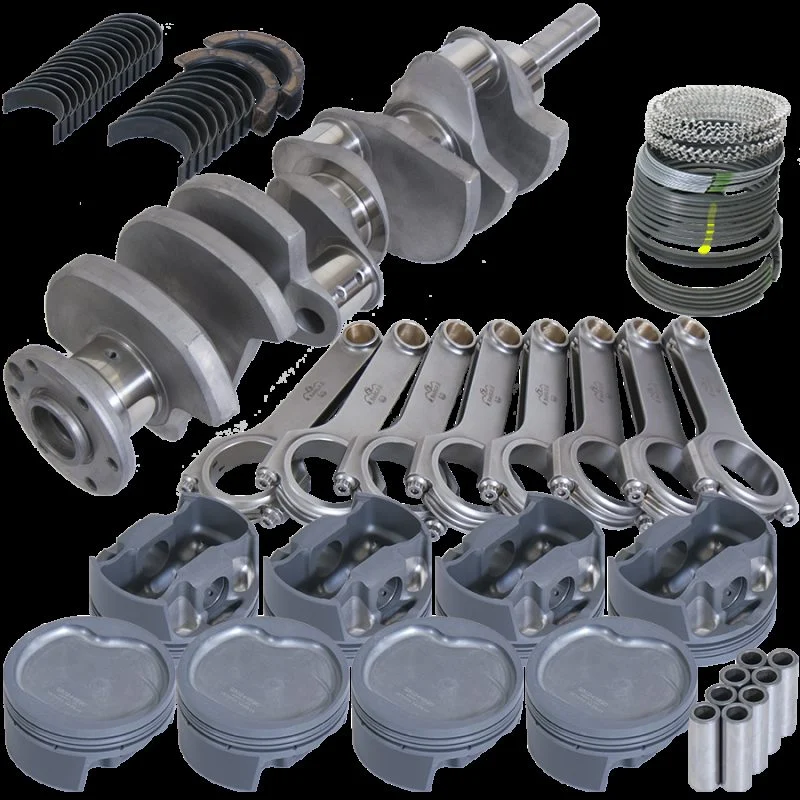

Rotating Assembly – Street / Strip – 545 CID – Forged Crank – Forged Pistons – 4.500 in Stroke – 4.390 in Bore – 6.700 in H Beam Rods – Big Block Ford – Kit

4.500″ Forged 4340 Steel Crank,6.700″ H-BEAM Rods,7/16″ ARP 8740 BOLTS,Forged 4032 MAHLE -38CC INV. DOME 4.390″ PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING XP Rod/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Piston Ring Gap: StandardPiston Ring Thickness: 1.5mm, 1.5mm, 3.0mmPiston Type: Scj Inverted Dome ForgedProduct Line: CompetitionRod Bearing Type: hardened, narrowed or chamferedRod Bearings Included: YesSecond Piston Ring Type: Reverse Twist IronThrust Washer Included: NoTop Piston Ring Type: Barrel Faced Plasma-MolyAssembly Balanced: NoAssembly Type: Competition AssemblyBalance Type: internalBore: 4.39Connecting Rod Bolt Diameter: 7/16 inConnecting Rod Bolt Material: ARP 8740Connecting Rod Design: H-BeamConnecting Rod Length: 6.800 inConnecting Rod Material: Forged 4340 SteelCrankshaft Center Counterweights: NoCrankshaft Flange Bolt Holes: 6Crankshaft Main Journal Diameter: 3.000 inCrankshaft Material: Forged 4340 SteelCrankshaft Reluctor: NoCrankshaft Rod Journal Diameter: 2.200 inCrankshaft Stroke: 4.500 inCylinder Bore Diameter: 4.390 inDamper Included: NoFlexplate/Flywheel Included: NoMain Bearing Type: hardened, narrowed or chamferedMain Bearings Included: YesOil Rail Support Included: NoPiston Brand: MahlePiston Dome Volume: -38ccPiston Face Type: inverted domePiston Material: Forged 4032 AluminumPiston Pin Diameter: .990 inPiston Pin Type: Full Floating
