Diode Dynamics DD8825 – 22-25 Toyota RAV4 Elite Series Fog Lamp Kit – White

Description

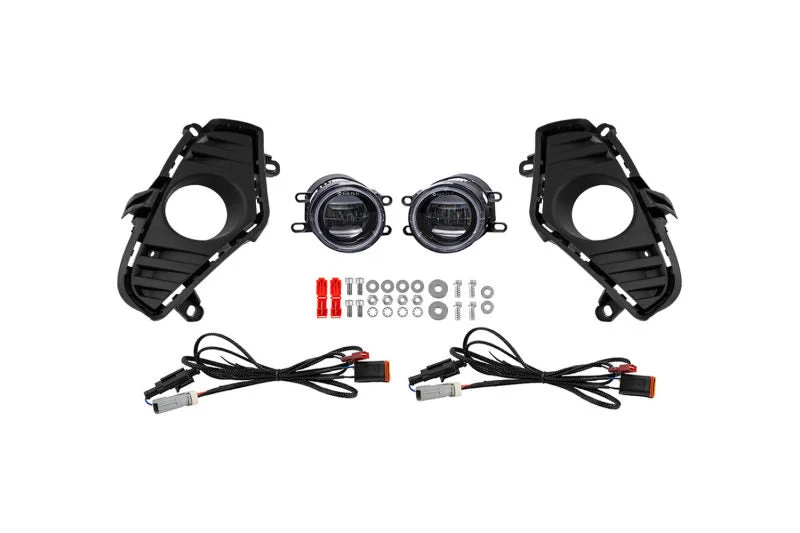

Diode Dynamics DD8825 – 22-25 Toyota RAV4 Elite Series Fog Lamp Kit – White

High-performance OEM-grade replacement with custom-engineered optics.

Elite Series Fog Lamps are the first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards.

Features

• Upgrade kit that adds larger higher-output fog light.
• Includes custom bezel for factory-style appearance and fitment.
• SAE F3-compliant fog light for road-legal output.
• Custom-engineered optic provides wider brighter output than factory.
• Integrated amber backlight adds a distinctive accent.

Overview

Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards. This is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

Output that Outperforms. The Elite Series Fog Lamp optic produces a light pattern that is wider than any other aftermarket fog lamp on the market with an 80-degree spread of highly intense light. The pattern is extremely smooth throughout with a sharp cutoff to avoid glare to other drivers. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.

• Custom-engineered optic provides extremely wide intense light output
• Distinctive amber backlight
• Road-legal fog light (SAE F3 compliant)
• Plug and play main beam no modification needed

Add-On: N/ABeam Angle: Fog 75° x8°Bulbs Included: NoColor Temp: 6000KCompliance Rating: SAE J583 Foglamp Beam PatternDOT Approved: YesHousing Color: BlackHousing Shape: FogInput Power (watts): Main Beam: 18 Backlight: 0.3Intensity (lux): 13 000 cdIntrusion Rating: IP68 WaterproofLight Beam Pattern: FogMeasured Output (lumens): 680 lmMounting Hardware Included: YesOperating temperature: -40C to 85C (-40F to 185F)Operating Voltag: 9-16VRaw Output (lumens): 1 850 lmStreet Legal: YesTerminal Type: PinVoltage: 9-16VWiring Harness Included: Yes
