CSF 3328 – 04-15 Nissan Titan Armada Radiator

Description

CSF 3328 – 04-15 Nissan Titan Armada Radiator

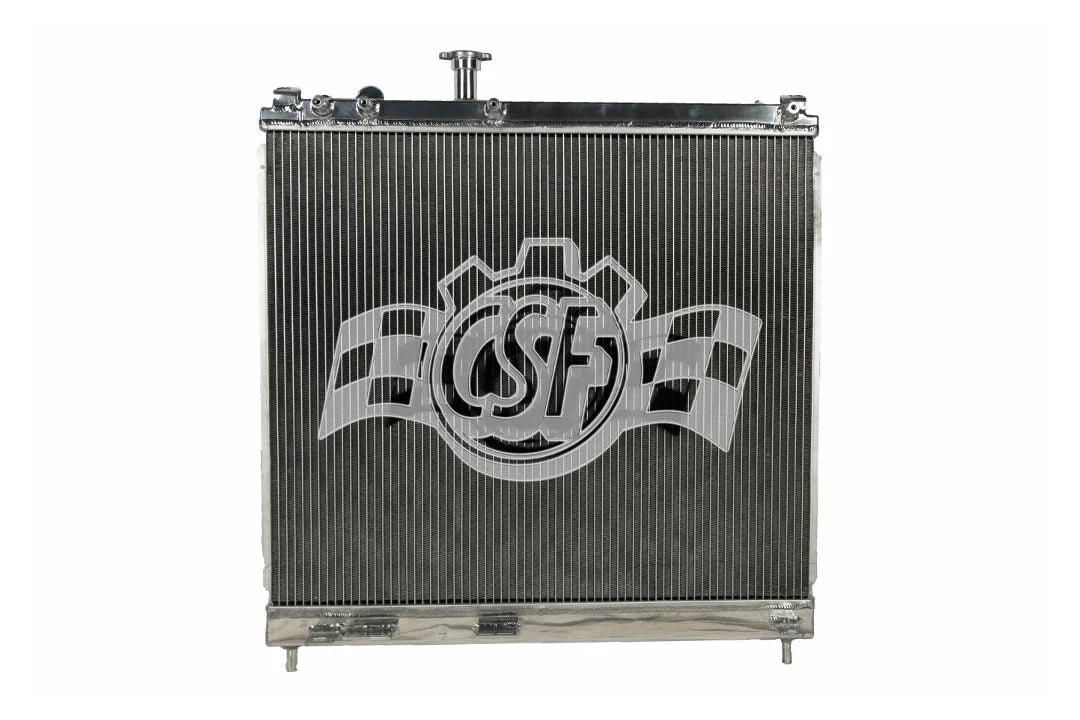

04-14 Nissan Titan / 05-14 Armada / 04-13 Infiniti QX56 All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Titan. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Titan running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF’s exclusive B-Tube Technology: Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in the shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes – producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow”. CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

• 100% OE style & OE specs for “Dop-in fit”
• Pre-installed & tested drain plug
• 100% Hydrostatic tested at 1.5 times operating pressure
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• 1-Hour “Mirror Finish” Hand Polish
• “Drop-in Fit” Requiring No Modifications to Install – Accepts All Attaching OEM Components Including “Quick Connect” Hoses, AC Condenser, Mounting Brackets and Fan Shroud

Core Material: AluminumCore Width: 27.125 in.Radiator Cap Included: YesOutlet Connector Type: Slip OnInlet Connector Type: Slip OnDown Flow Or Cross Flow Type: Down FlowInternal Engine Oil Cooler: NoInternal Transmission Oil Cooler: NoOutlet Location: Bottom LeftInlet Location: Top RightOutlet Diameter: 1.375 in.Inlet Diameter: 1.375 in.Core Row Quantity: 2Core Thickness: 2.0625 in.Core Height: 23.4375 in.Mounting Hardware Included: NoThermostat Included: NoTank Material: AluminumMounting Type: Mounts with OE HardwareFrame Included: NoCoolant Hose Outlet Connection Type: OE Type ConnectionCoolant Hose Inlet Connection Type: OE Type ConnectionInstallation Type: Drop-In Fit InstallationFinish/Color: PolishedGrade Type: Performance
