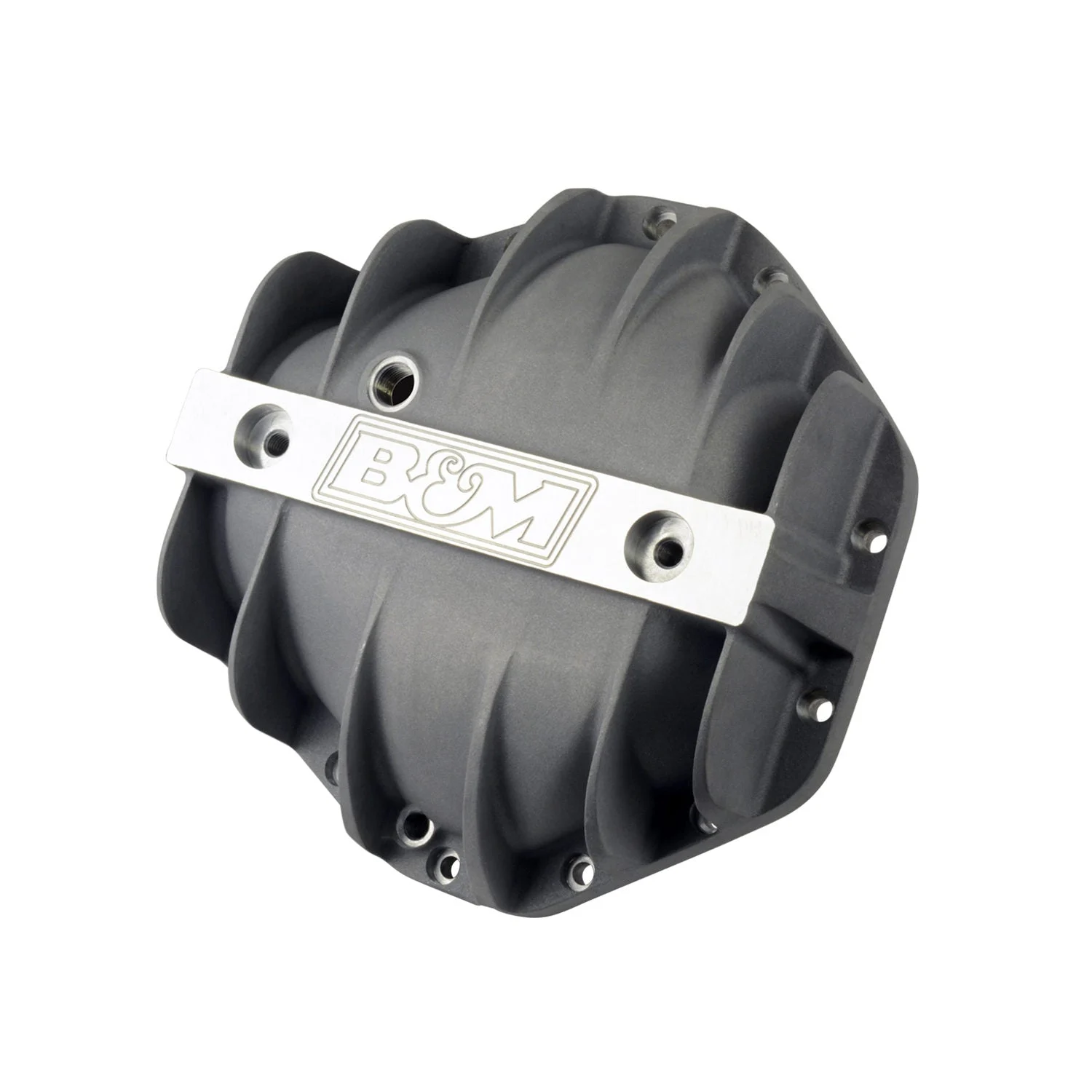

B&M 70501 – Cast Aluminum Differential Cover for GM 10.5″ 14 Bolt

Description

B&M 70501 – Cast Aluminum Differential Cover for GM 10.5″ 14 Bolt

Differential Cover – Hi-Tek – Support – Hardware Included – Aluminum – Natural – 10.5 in – GM 14-Bolt – Each

Hi-Tek Differential Cover; For Use w/GM 10.5 in. 14 Bolt; Incl. Cover/Fill And Drain Plugs/Bolts/Washers/Load Bolts/Nuts;

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Does Not Include Gasket

• Load Bolts for Additional Support for Bearing Caps
• Magnetic Drain Plug for Easy Servicing
• Additional .75-quart of Fluid Capacity
• A356.0-T6 Aluminum Construction
• Over 65 Years of B&M Quality
• Lifetime Limited Warranty
• Machined B&M Logo

Additional Fluid Capacity (qts): NoAdditonal Fluid Capacity (qts): NoBolt Count: 14Bolt Pattern: GM 10.5Bolt Quantity: 14Bolt/Studs Included: YesBrand: B&MCall Out Size (in): 3.33Carrier Main Cap Support: YesCategory: Transmission and DrivetrainColor/Finish: Raw AluminumDrain Plug Included: YesEmission Code: 5Filler Plug Included: YesFinish: Cast AluminumGasket Included: NoGasket Or Seal Included: NoGaskets Included: NoGrade Type: PerformanceMaterial: A356.0-T6 AluminumMounting Bolt Hole Quantity: 14Mounting Bolts Included: Yespart type: Differential CoverProduct Type: Differential CoverStuds Included: YesThickness (in): 3.8Warning: California Proposition 65
