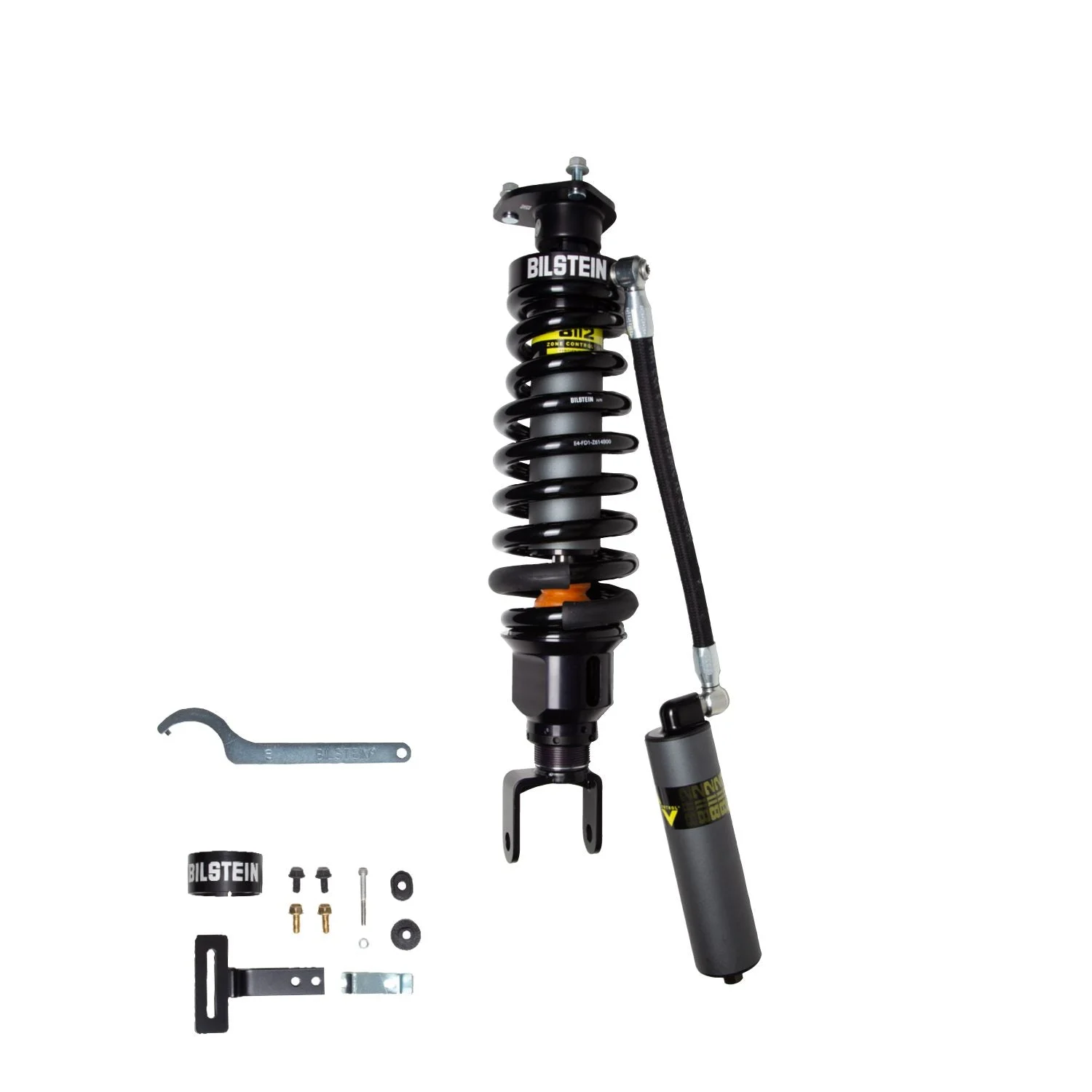

Bilstein 41-325230 – 19-24 Dodge Ram 1500 4WD B8 8112 ZoneControl CR Front Right Suspension Kit – 0.6-2.6in Lift

Description

Bilstein 41-325230 – 19-24 Dodge Ram 1500 4WD B8 8112 ZoneControl CR Front Right Suspension Kit – 0.6-2.6in Lift

B8 8112 (ZoneControl CR) – Front Right Corner Module

60mm Front Right Corner Module

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

PartType: Shocks / StrutsReservoir: YesSeries: B8 8112 (ZoneControl CR)Collapsed Length (MM): 429.8Piston Diameter: 60mmBoot Included: NoShaft Diameter (mm): 22.0Lower Mount Type: Eye 16.5mmFinish: Dampers: EVO Grey/Springs: BlackFront Main Spring Rate (lbs/in): 550 lbsSegment: Light TruckExtended Length (IN): 22.16Adjustable Damping: Non-AdjustableCollapsed Length (IN): 16.92Spring Seat Included: YesBody Design: Smooth Body (Coilover)Body Material: SteelExtended Length (MM): 562.8Internal Design: MonotubeUpper Mount Type: Special
